Temperature Sensor TS247

sensor de temperatura Tecmes TS247
sensor de temperatura de agua, con flotador

Featured Features:

  • Sensor TS 247
  • Sensor TS 265 with float for evaporation tank.

The temperature sensors of this series are constructed with stainless steel sheath and have a high accuracy linear thermistor as a temperature sensitive element.
The sheathing in stainless material gives it durability even in adverse environmental conditions.

SPECIFICATIONS

Ranges: -30° a + 50°C
Sheath: Stainless steel AISI 316
Accuracy: ± 0,3°C in the whole range
Power Supply: 4 +/- 0.003 V stabilized
Consumption: <1 mA
Load impedance: < 1MΩ

*Other speci!cations and ranges available upon request..

Output range: 580 mV a 2755 mV
Wire: 5 m Standard length
Dimensions: 80 mm (lenght) x 8 mm (Diameter)

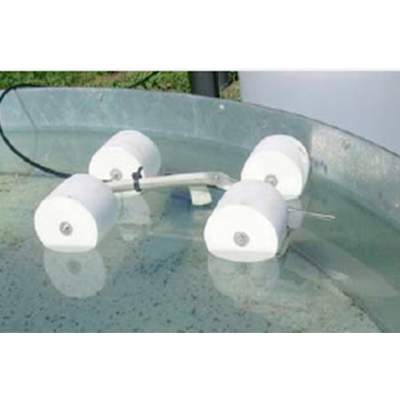

Model TS265: with float for evaporation tank
download technical sheet
